The Dikerio® facade line which offers more efficient solutions for the most demanding of architectural projects.
The largest Sintered Stone on the market, which enables a high yield for each piece and reduces completion times thanks to the large formats available.
Dikerio® SKYLINE ventilated facades provide continuous insulation and block direct solar radiation for considerable energy savings.
Resistant to changes in temperature and stains, Dikerio® is produced with 100% natural raw materials which also makes it resistant to UV rays. Characteristics that guarantee the non-alterability of the material with the passing of time.
With extraordinary physical properties, Dikerio® has become an excellent material for exterior use also because of its lightness which enables easy installation.
In addition, it offers a very wide variety of colors and finishes allowing architects the pleasure of a great amount of esthetic freedom.
段落1
Benefits of chemical-elastic anchoring
Distributes stress evenly without critical points where ruptures could begin
Preventions a concentration of stress in the adhesion surface
A hidden fixing system is created without affecting the appearance
Prevents galvanic corrosion via electrical insulation and separates materials that could become damaged by this.
Reduces or eliminates the transfer of vibrations between materials in contact.
Prevents failure in the connection due to fatigue.
Enables the connection of different types of materials.
Improves the look of the joints.
System properties

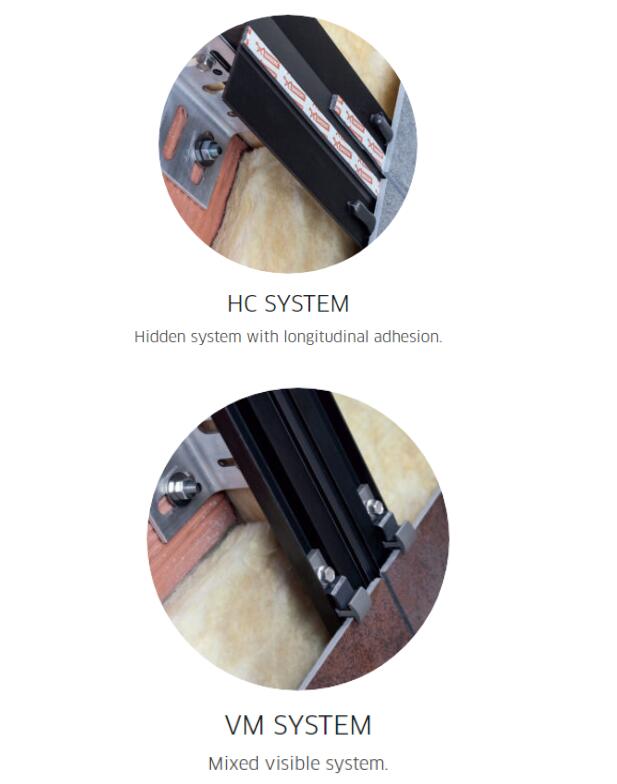

The system is comprised of support squares, vertical profiles and clamps to support the tiling.
With these squares, it is possible to ensure the proper levelling of the vertical profiles by correcting small deviations in the original façade to be tiled.
To ensure the stability of the system, a line of elastic adhesive is placed all along a vertical T-profile.
This elastic adhesive enables the proper assembly of the pieces to improve the system's reaction to wind pressure or suction and loads.
The possible vibrations caused by these forces are also absorbed by this adhesive.
Finally, the clamps are secured to the vertical profiles with stainless steel self-perforating screws so Neolith pieces can be quickly and easily replaced

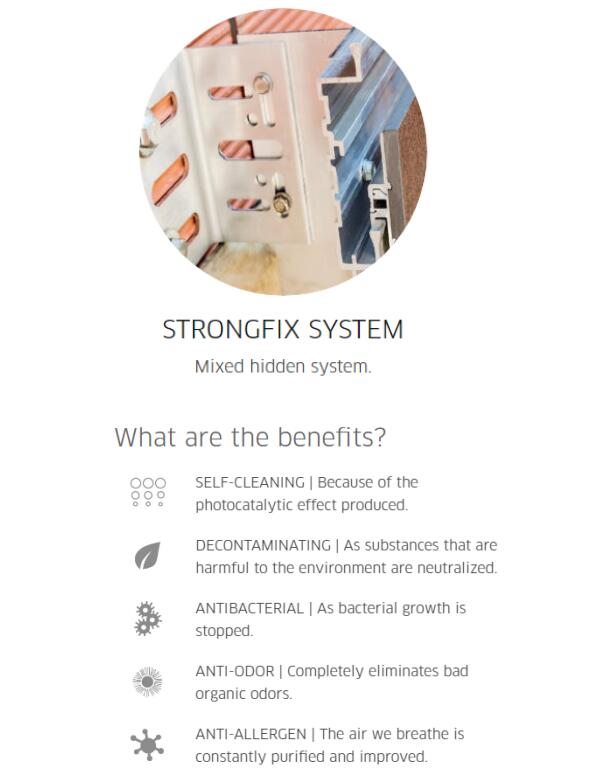

These tiles are industrially mechanized with a longitudinal profile on the upper and bottom parts. The STRONGFIX system enables central mechanizations on the back of a piece for cases where, due to the dimensions of a piece, they are required on the back of a tile with a double groove and a 45 degree angle (like a dovetail) where two aluminum profiles are inserted and fixed with MS adhesive putty to secure Neolith tiling.
These metal profiles create the mechanism for hanging tiles with added benefits as removing and replacing pieces with this system is very simple.
The system is comprised of vertical aluminum profiles which support squares. With the squares, the aluminum profiles may be installed in completely flat Ts to correct any possible deviation on a façade which needs to be covered.
The panels are secured by hand to a horizontal profile with a longitudinal mechanical fixing system comprised of two aluminum fixing profiles.
